Why I Never Trust the Ice Machine Dimensions Printed on the Box

I once spent four hours on my hands and knees trying to jam a '15-inch' unit into a 15.1-inch gap in a custom wet bar. On paper, it was a match made in heaven. In reality, it was a $1,200 metal box that refused to budge. If you think ice machine dimensions are just about the width and height of the stainless steel chassis, you are headed for a very expensive headache involving a circular saw and a lot of regret.

• Standard widths like 15 or 18 inches rarely account for the heavy-duty power cord or braided water lines.
• Proper ventilation is the difference between a 5-year lifespan and a dead compressor in 14 months.
• Door hinges often require extra clearance to fully swing open for bin removal.
• Gravity drains require a specific floor-to-unit pitch that can't be ignored.

The Day I Realized '15 Inches Wide' Is a Complete Lie

The spec sheet said 15 inches. My opening was 15 and one-eighth. I thought I was being clever by leaving that extra eighth of an inch for 'wiggle room.' I wasn't. As soon as I pushed the unit halfway in, the braided stainless steel water line bunched up behind the machine. Because I hadn't accounted for the depth of the water inlet and the thickness of the power plug, the machine stuck out two inches past the cabinetry. It looked amateur, and it was entirely my fault for trusting the box.

Manufacturers measure the box, not the reality of plumbing. Most 115V plugs aren't flush; they stick out an inch or more. Then you have the water supply and the drain line. If you don't have a recessed 'clock box' outlet and a recessed drain, you have to add at least two inches to the depth of any machine you buy. I had to learn that the hard way, sweating in a cramped kitchen while the homeowner watched me fail to make the math work.

Then there is the issue of 'cabinet swell.' If you are installing in an older home, your cabinets aren't perfectly square. That 15-inch gap might be 15 at the floor but 14.8 at the top. I always tell people to measure at three different heights. If you don't, you'll be shaving down your face frames just to get the door to close.

The Hidden Clearances Missing From Standard Ice Maker Dimensions

The physical footprint is just the start. An ice machine is essentially a small heat-rejection factory. It takes heat out of water to make it freeze and dumps that heat into the surrounding air. If that air has nowhere to go, the machine will choke. I've seen units where the compressor was so hot you could fry an egg on it, all because the owner thought a 'flush fit' meant zero air gap. Failing to account for these ventilation requirements can ruin custom kitchen layouts by forcing you to cut unsightly vents into your expensive millwork later on.

Most under-counter units pull air in from the bottom front and kick it out the same way, but they still need side and rear clearance to prevent heat soak. If the ambient temperature around the machine stays above 90 degrees because of poor airflow, your '26 lbs per day' machine will struggle to produce 12 lbs. The ice will be soft, wet, and melt almost instantly in the bin. I've timed it—poorly ventilated machines take 30% longer to drop a batch of cubes.

You also need to consider the 'service loop.' You need enough slack in the water and power lines to pull the machine out for cleaning. If you cut your ice maker dimensions too tight, you'll never be able to reach the back to scrub the condenser coils. A dusty coil is the number one killer of ice machines, and if you can't get to it, you're basically waiting for the machine to die.

The Door Swing Disaster You Didn't Plan For

Here is a spec you won't find on the front of the box: the hinge pivot radius. Many ice makers have doors that swing out and slightly to the side. If you install the machine flush against a side wall or a deep cabinet gable, the door might only open to 85 degrees. That sounds fine until you try to pull the internal ice bin out to sanitize it. Most bins require the door to be open at least 100 degrees to clear the gaskets.

I've been to three different houses where the owners had to remove the entire machine from the cabinetry just to clean the bin. It’s a nightmare. Always check if the door is field-reversible, and always leave at least an inch of clearance on the hinge side if you’re putting it next to a wall. Your future self, covered in cleaning solution and frustration, will thank you.

The Specifics of Ice Maker Dimensions Under Counter

When you start looking at ice maker dimensions under counter, you have to look down at your feet. Toe kicks are not standardized. If your kitchen has a 4-inch toe kick and your ice maker has a 3-inch base, it’s going to look like a sore thumb. Some high-end units allow you to wrap your own cabinetry toe kick across the bottom, but cheaper units have a fixed black or stainless grate that you’re stuck with.

Flooring is another trap. If you’re installing the machine over subfloor and then tiling around it, you’ve just 'boxed in' the machine. I’ve seen people tile themselves into a corner where the machine is now an inch lower than the floor level, making it impossible to slide out for repairs without breaking tiles. Always tile under the appliance space. It keeps things level and makes the ice maker dimensions actually manageable when it comes time for maintenance.

Also, watch out for the dishwasher. Placing an ice maker right next to a high-heat appliance like a dishwasher is a recipe for failure. The heat from the drying cycle will transfer through the cabinet walls, warming up the ice maker's cabinet and forcing the compressor to work double-time. If you have to put them side-by-side, use a layer of foil-faced foam insulation between them. It’s a tight squeeze, but it saves the motor.

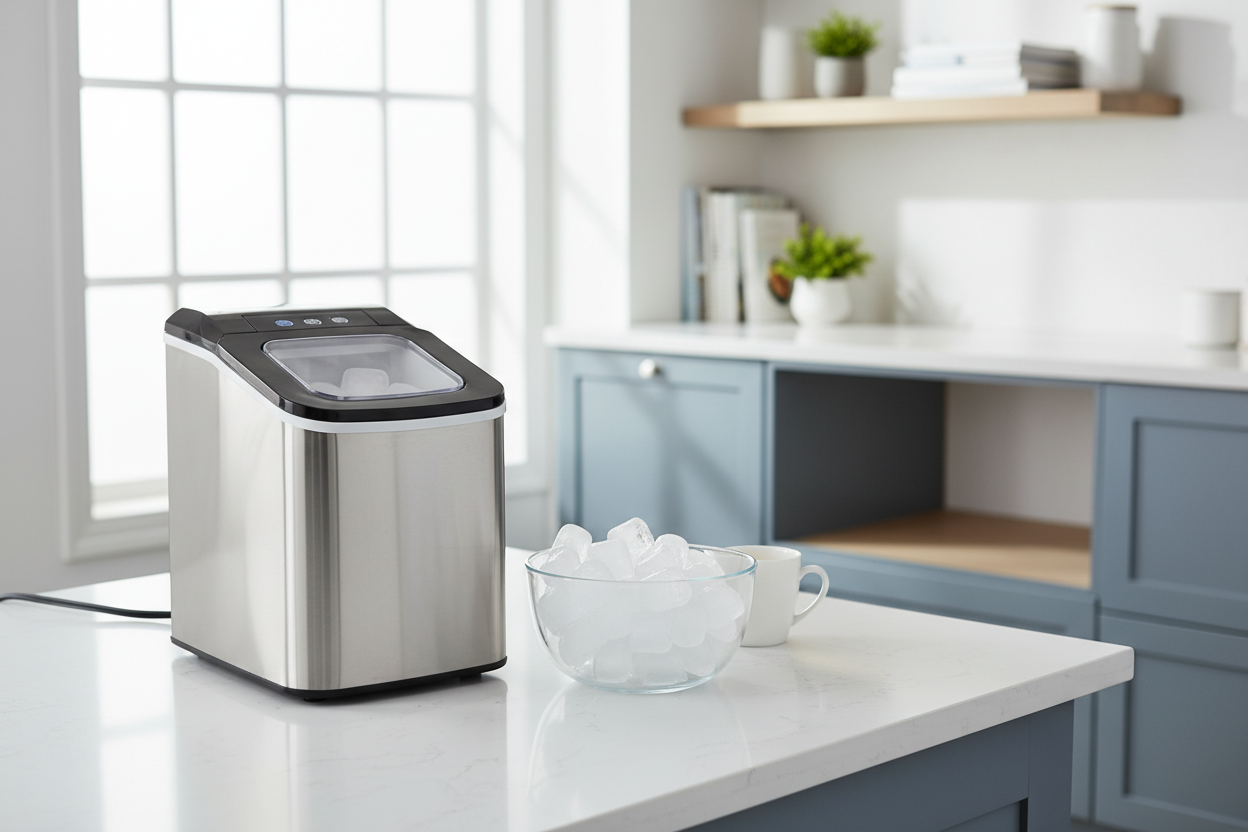

Why I Eventually Retreated to a Countertop Setup

After years of fighting with plumbing, drains, and cabinet clearances, I’ve started recommending countertop units for a lot of my friends. Unless you are hosting 20-person cocktail parties every weekend, a built-in unit is often overkill and a maintenance sinkhole. The ice maker dimensions for a countertop unit are much more forgiving—you just need a bit of space next to an outlet and you're done. No plumbers, no saws, no tears.

When people ask me questions about counter ice maker machines, they usually worry about the look. But honestly, a sleek black ice maker sitting on the counter can look just as professional as a built-in, especially if you have the 'nugget' ice variety that everyone craves. You lose a little bit of counter space, but you gain the ability to move the machine to the patio or the RV when you need to.

I found that for my daily use—iced coffee in the morning and a couple of drinks at night—a portable unit is actually more efficient. It doesn't have to keep a massive bin cold all day. It just makes what I need, when I need it. Plus, if it leaks, I see it immediately on the counter rather than finding a rotted subfloor six months later behind a built-in unit.

How to Actually Measure Your Space Before Buying

Ready to pull the trigger? Don't touch that 'Buy Now' button until you've done this checklist. First, measure the width of your opening at the front, the middle, and the back. Use the smallest number. Then, measure the height from the floor to the underside of the countertop in at least two places. Standard is 34.5 inches, but older homes can sag as low as 33 inches.

Next, check your depth. Measure from the wall to the face of the cabinet frame. Subtract 2 inches for the 'utility zone' (water and power). If the remaining number is smaller than the depth listed in the machine's ice maker dimensions, it’s going to stick out. Don't assume you can just 'push harder.' You'll kink the water line and end up with a flood.

Finally, check the floor. Put a level on it. If the floor slopes toward the back, your gravity drain won't work, and you'll need a model with a built-in drain pump. Pumps add cost and noise, but they save you from standing water and mold. Do the work now, or pay a contractor to fix it later. The choice is yours.

Ice Machine Dimension FAQs

How much clearance do I need behind an ice maker?

At minimum, leave 2 inches. This accounts for the bend radius of the water line and the depth of the power plug. If you use a 90-degree elbow for your water connection, you might squeeze by with 1.5 inches, but 2 is the safe bet for airflow.

Can I install a countertop ice maker inside a cabinet?

Only if you leave the door open while it’s running. Countertop units vent a massive amount of heat from the side or back. If you trap that heat in a closed cabinet, the machine will overheat and shut down within an hour. It’s a fire hazard and a great way to kill the warranty.

Do I really need a floor drain for an under-counter unit?

Unless you buy a model specifically labeled as having a 'built-in condensate pump,' yes. Ice makers don't have refrigerated bins; the ice slowly melts and needs to drain away. Without a pump or a floor drain, that water has nowhere to go but your floor.
