Whirlpool Refrigerators Side-by-Side Not Making Ice? Check This Sensor
It is 90 degrees out, you grab a glass for a quick refresh, and you get nothing but the hollow, mocking sound of a plastic auger spinning against thin air. Having whirlpool refrigerators side-by-side not making ice is a rite of passage for most homeowners, and it usually happens exactly when you have a house full of guests. I have spent enough time with my head inside a freezer to know that a lack of ice is rarely a mystery; it is usually a specific mechanical failure disguised as a minor inconvenience.
- Optic sensor failure is the #1 reason these side-by-side units stop producing.
- A frozen fill tube often mimics a broken water inlet valve.
- Ice jams in the tray can stall the entire harvest cycle.
- Countertop units are the only way to get truly reliable ice production long-term.
The Humiliation of Chipping Frost Off a Fill Tube
I once spent an entire Saturday morning with a hairdryer pointed at the back of my freezer because of the classic no water to ice maker but water to door whirlpool scenario. It is a confusing mess for most people because the water dispenser works perfectly, yet the ice tray remains bone dry. To understand why, you have to look at how does the ice maker work on a whirlpool refrigerator.
The water line splits at a dual-inlet valve. One side feeds your glass; the other climbs up the back of the fridge to a small plastic fill tube. In side-by-side models, that tube is prone to freezing solid if your freezer temp is set too low or if the water pressure is weak. If that tube has a plug of ice the size of a pencil eraser, your ice maker is effectively dead until you thaw it out.
Stop Replacing the Water Filter
The first thing most people do is buy a $50 replacement filter. While a clogged filter can reduce flow, it is rarely the reason for a total shutdown. I have seen countless cases of a whirlpool fridge not making ice after filter change because an air bubble got trapped in the line or the new filter was not seated with enough force to engage the bypass valve.
Before you spend more money on consumables, check if water not getting to ice maker whirlpool assemblies is actually a valve issue. Ice Maker in Whirlpool Refrigerator Not Working? Try This Quick Reset to see if you can force a harvest cycle. If the tray flips but no water enters, your inlet valve or the line itself is the culprit, not the filter.
The Blinking Red Light: Diagnosing the Optics Board
If you own a Whirlpool side-by-side, you need to know about the infrared optics. There is a transmitter on one side of the freezer and a receiver on the other. They send an invisible beam across the ice bin. If the bin is full, the beam is blocked, and the fridge stops making ice. It is a clever design until the boards fail.
Open your freezer door and look for the small red light on the right-hand wall. If it is blinking a code—usually two blinks followed by a pause—your sensors are shot. This is the most common reason for whirlpool refrigerator ice maker not working in these specific models. You can try to how to fix ice maker whirlpool side by side by cleaning the sensor lenses with a damp cloth, but usually, the circuit board itself has succumbed to the moisture of the freezer environment.
Dealing with a Frozen Auger Motor and Jammed Cubes
Sometimes the ice maker is actually doing its job, but the delivery system has failed. I have seen ice cubes stuck in ice maker tray whirlpool units where the heater (which warms the tray to release the cubes) has burnt out. The motor tries to eject the ice, realizes it is stuck, and just gives up to prevent the gears from stripping.
Even worse is the whirlpool auger motor frozen solid. This happens when moisture from the room gets into the ice bin, melts the top layer of cubes into a single block, and then refreezes. The motor hums, the fridge shakes, but no ice comes out. You have to pull the entire bin out, dump the ice block, and let the motor housing dry out completely before it will spin again.
Why I Finally Abandoned Built-In Door Ice Makers
After years of replacing optics boards and thawing out fill tubes, I realized that whirlpool refrigerator ice maker quit working is not a fluke; it is an inevitability of the design. Putting a water-filled mechanical device inside a freezing box is a recipe for maintenance headaches. I eventually stopped relying on the door dispenser entirely.

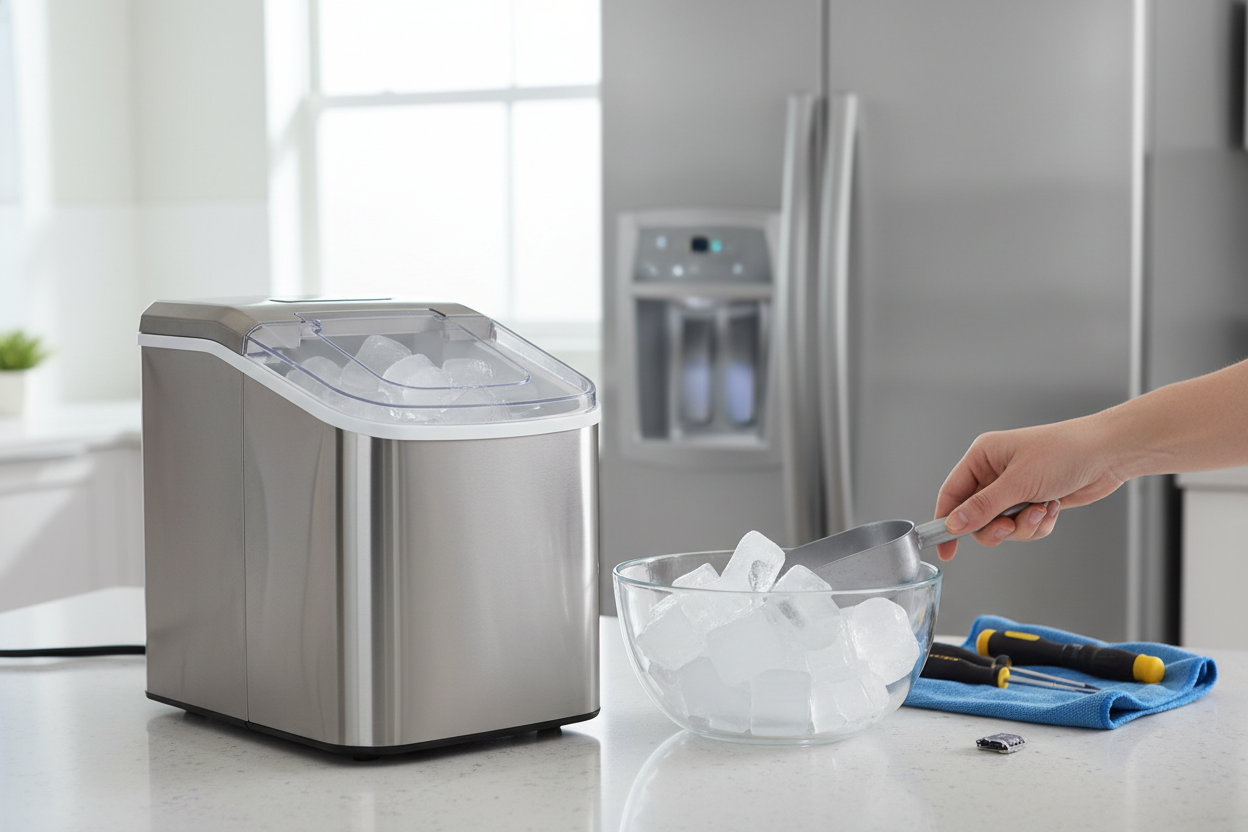

I switched to a dedicated Black Ice Maker for my daily needs. It sits on the counter, doesn't require a water line that can freeze, and produces a fresh batch of ice every 6 to 9 minutes. If you are tired of the constant troubleshooting, a standalone Ice Maker provides a level of reliability that a 10-year-old fridge simply cannot match. It is the only way to ensure you actually have ice when the temperature hits triple digits.
FAQ
Why is my Whirlpool ice maker not filling with water?
It is likely a frozen fill tube or a failed water inlet valve. Check the tube at the back of the freezer first; if you see ice inside it, thaw it with a hairdryer on a low setting.
How do I reset my Whirlpool ice maker?
Most models don't have a dedicated button. You usually reset them by toggling the wire shut-off arm up and down or by pressing the door light switch five times quickly to trigger a service mode.
Why does my ice maker work intermittently?
This is usually a sign of failing optics sensors. The infrared beam is flickering or the sensor is struggling to 'see' the receiver through frost buildup on the lens.
