It was a humid Friday evening, exactly twenty minutes before twelve people were due at my house for a backyard BBQ. I hit the dispenser on my fridge door, expecting that satisfying rattle of frozen cubes. Instead, I got a pathetic, mechanical groan. No ice. Not even a shard. I ended up sprinting to the gas station for three bags of overpriced, half-melted cubes. That was the moment I realized my whirlpool ice machine repair journey had officially begun.

Quick Takeaways

  • Most fridge ice makers fail due to a frozen fill tube or a faulty inlet valve.
  • Replacement parts for modern Whirlpool units (like optic boards) can cost upwards of $150.
  • The '26 lbs per day' rating is a laboratory fantasy; real-world output is usually much lower.
  • A dedicated countertop unit often produces ice faster and more reliably than a built-in.

The Day the Cubes Stopped Flowing

The modern refrigerator is a marvel of engineering, but the ice maker is its Achilles' heel. I’ve spent years testing these things, and they all eventually succumb to the same fate: scale buildup, frozen lines, or a control board that simply gives up the ghost. When my Whirlpool stopped, I didn't panic. I thought I'd just swap a part and be done with it.

I pulled the bin out and saw the tray was bone dry. No water was reaching the mold. I could hear the solenoid clicking, trying its best to pull water from the line, but nothing happened. I checked the filter, the water pressure, and even the temperature settings. Everything looked fine on paper, but the reality was a warm drink and a growing sense of frustration.

The Rabbit Hole of Diagnostic Codes

If you’ve ever tried to read the blinking lights on a Whirlpool optic board, you know it’s like trying to decode Morse code in a storm. One blink, two blinks, a long pause—it’s enough to make you want to throw the whole fridge in the driveway. I spent four hours on a Saturday morning with a multimeter, trying to figure out if the issue was the emitter board or the receiver board. Spoiler: it’s almost always the one that’s out of stock.

This wasn't my first rodeo. I've written before about Why My Whirlpool Refrigerator Ice Maker Repair Was a Total Waste of Time, and yet, here I was again. The ice maker repair whirlpool refrigerator process is designed to be difficult. You aren't just replacing a tray; you're navigating a complex ecosystem of sensors that decide whether or not you deserve a cold beverage. It’s an escalating battle of man versus machine where the machine has all the spare parts.

How to Repair Whirlpool Ice Maker Issues (If You're Feeling Brave)

Before you call a pro and drop $300 on a service visit, there are three things you should check. First, look at the fill tube. It’s the little plastic spout that dumps water into the ice tray. These frequently freeze solid. Take a hairdryer to it for ten minutes—just don't get too close or you'll melt the plastic housing. If water starts dripping, you’ve found your culprit.

Second, check the water inlet valve at the back of the fridge. If you hear a humming noise but no water flows, the valve is likely clogged with sediment or just dead. You can find these for about $40, and they’re relatively easy to swap if you’re handy with a wrench. Finally, check the shut-off arm. Sometimes it gets stuck in the 'up' position, telling the fridge the bin is full when it’s actually empty.

If those three things don't fix it, you're looking at a more serious how to repair whirlpool ice maker situation. At that point, you're dealing with the modular ice maker unit itself or the main control board. Both are expensive, and neither is a fun Saturday afternoon project.

The Breaking Point: When Parts Cost More Than Solutions

The math eventually catches up to you. An ice maker repair for whirlpool refrigerator units isn't cheap. By the time I factored in the $130 optic kit and the $60 replacement motor, I was staring down a $200 bill just for parts. And that doesn't include my time. I’ve clocked cycle times on these units; they take about 90 minutes to drop 8 cubes. That’s a glacial pace for a $2,000 appliance.

I realized I was throwing good money after bad. Even if I fixed it, the design flaw—placing the ice maker in a 38-degree fridge compartment rather than a 0-degree freezer—meant it was destined to fail again. The seals wear out, moisture gets in, and the cycle of frustration repeats. I decided I was done being a fridge mechanic.

Why I Bailed and Bought a Countertop Machine

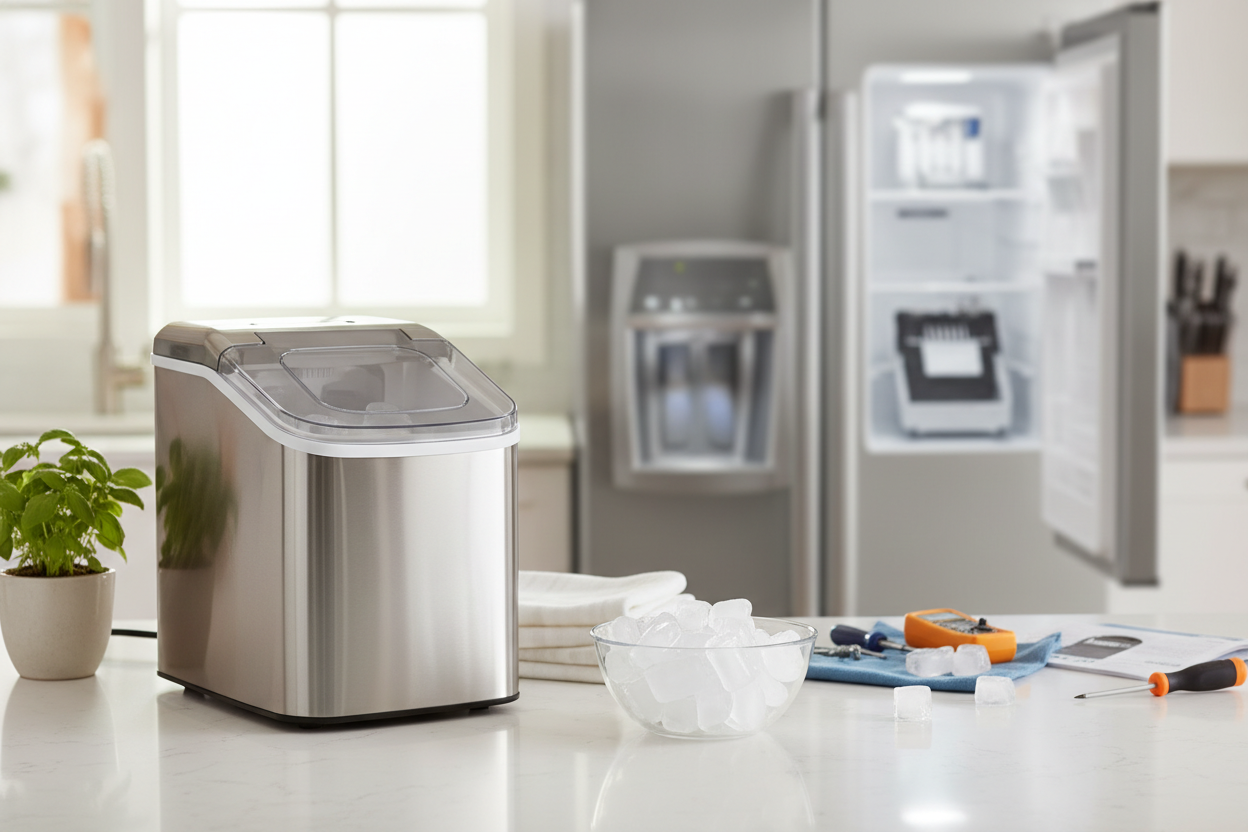

I finally threw in the towel and bought a dedicated Ice Maker. The difference was night and day. Instead of waiting two hours for a handful of cubes, I had my first batch of bullet ice in exactly 7 minutes. It sits right on the counter, plugs into a standard outlet, and doesn't require a complex diagnostic manual to operate. It’s loud—you’ll hear the fan and the occasional 'clunk' as ice drops—but it actually works.

I opted for a Black Ice Maker to match my other small appliances, and it looks surprisingly sharp. The best part? If it ever breaks, I’m not out a refrigerator. I’m out a small, easily replaceable appliance. No more hunting for specialized OEM valves or waiting two weeks for a technician to tell me what I already know. I’ve traded the 'convenience' of a door dispenser for the reliability of a machine that does one thing and does it well.

FAQ

Why is my Whirlpool ice maker not making ice but the water works?

This usually means your water inlet valve has two solenoids—one for the water dispenser and one for the ice maker—and the ice side has failed. It could also be a frozen fill tube blocking the flow.

How do I reset my Whirlpool ice maker?

Find the door switch and hold it in. Then, find the light sensor (usually on the side of the freezer wall) and block it with your hand. If the status light blinks twice and pauses, it's in diagnostic mode. You can often force a harvest cycle by jumping the 'T' and 'H' points on the modular head with a piece of wire.

Is it worth repairing an ice maker that is 5+ years old?

Honestly? Probably not. Between the cost of parts and the likelihood of another component failing shortly after, you're better off investing that money into a standalone unit that produces ice much faster.
