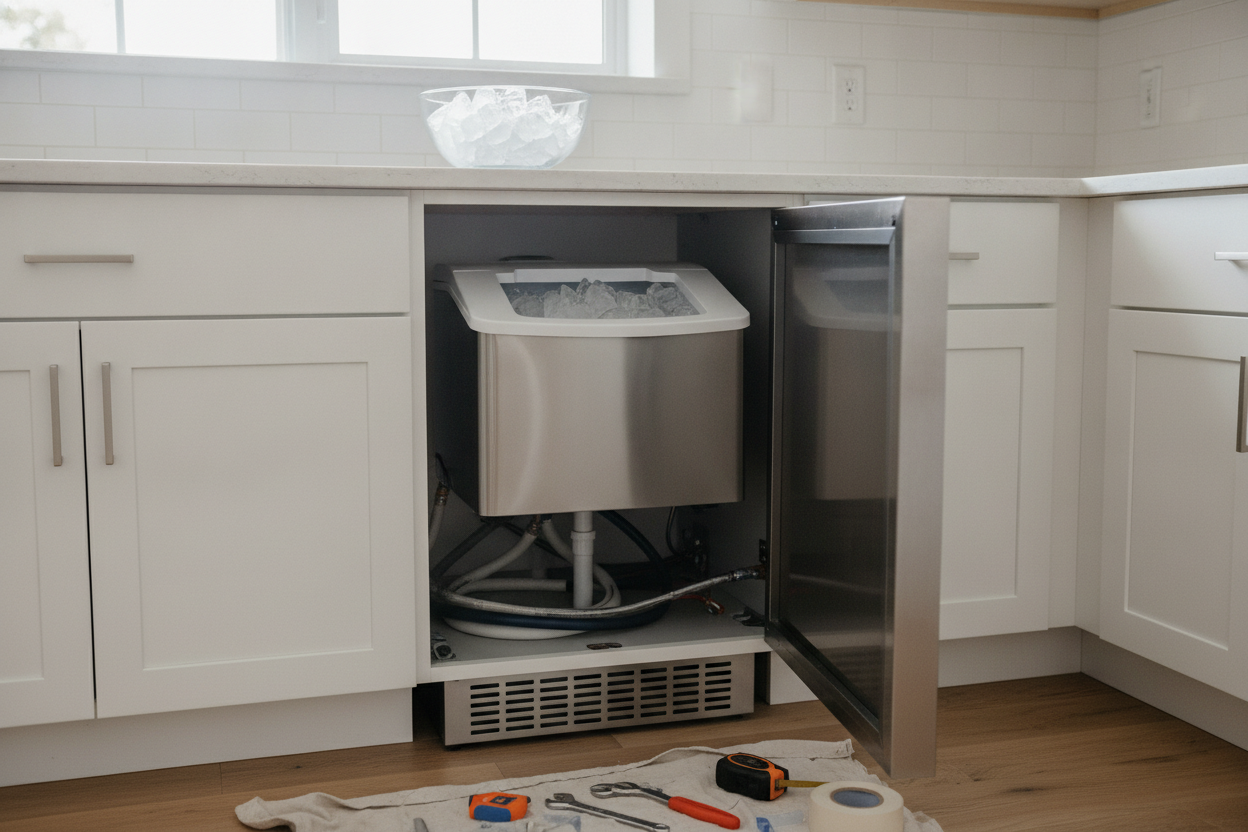

My Under Counter Ice Maker Installation Took 3 Days. Here's Why.

I remember the Saturday I thought I’d finally win at hosting. I had the high-end bourbon, the crystal glassware, and a brand-new 50-pound-per-day beast sitting in a crate in my garage. I figured I’d slide it in, twist a couple of compression nuts, and be crunching on sonic-style ice by the 4:00 PM kickoff. I was spectacularly wrong.

I’ve built my own PC and tiled a backsplash, so I figured under counter ice maker installation was just another Saturday afternoon project. I had ordered a commercial under counter built-in nugget ice maker thinking I could just swap out an old trash compactor and call it a day. The reality of kitchen retrofitting hit me the moment I realized my floor wasn't sloped and my plumbing was twenty feet away.

Quick Takeaways

• Gravity drains are cheaper but require a floor drain directly below the unit.
• Drain pumps add cost and a mechanical point of failure, but are mandatory for most kitchen remodels.
• Front-venting is non-negotiable; otherwise, your compressor will fry in a month.
• A dedicated 15-amp circuit is ideal to avoid tripping breakers during harvest cycles.

I Thought It Was Just Plug and Play

Most people assume an ice maker is just a small fridge that makes ice. It isn't. It is a plumbing fixture that happens to have a compressor. When I pulled out my old cabinet, I found a wall of solid drywall and a single electrical outlet. No water line. No drain. No hope for a 1-hour install.

Installing an undercounter ice maker requires precision. You aren't just plugging it in; you are integrating a machine that needs a constant supply of cold water and a way to get rid of a gallon of meltwater every few hours. If you don't have these things ready, you aren't installing an appliance—you're starting a renovation.

The Drainage Reality Nobody Mentions

Here is the part the glossy brochures skip: ice melts. Even the best insulated bins lose ice over time, and that water has to go somewhere. You have two choices: gravity or a pump. If you have a floor drain directly under the unit, you're golden. If not, you need a drain pump.

I didn't realize my unit didn't come with a built-in pump. I spent half of Sunday at the hardware store buying a peripheral pump and figuring out how to route a 3/4-inch drain line through my cabinets to the sink p-trap. It’s loud, it’s messy, and if it fails, your kitchen floor becomes a pond.

Do You Actually Need a Drain Pump?

Look at your wall. Is there a drain pipe sticking out lower than the bottom of the ice maker's drain port? If the answer is no, you need a pump. Most undercounter ice maker installation projects in existing kitchens require a pump because the sink drain is almost always higher than the floor-level outlet of the machine. Physics doesn't care about your DIY timeline.

Water Lines and Dedicated Circuits

You need a 1/4-inch OD water line. I see people try to tap into their dishwasher line with a plastic T-junction. Don't do that. The pressure drop when the dishwasher fills can starve the ice maker, leading to thin, brittle cubes or 'shell' ice that shatters instantly.

Electrical is the other hurdle. These machines pull a decent surge when the compressor kicks on. If you’ve got a high-end dishwasher and a microwave on the same circuit, adding an ice maker is a recipe for a dark kitchen. I ended up fishing a new Romex line from the basement to give this thing its own 15-amp breaker. It was the only way to sleep at night.

Cabinet Clearances and Ventilation

Heat is the enemy of ice. If you are tucking a machine into a tight cabinet, it must be a front-breathing model. I spent hours obsessing over the look of a sleek black ice maker to match my dark oak cabinets, but if I hadn't left the required 1/2-inch gap on the sides and kept the front kickplate clear, the unit would have overheated by Tuesday.

Check your specs. Most built-ins need a specific clearance for the door to swing 90 degrees so you can actually pull the bin out for cleaning. If your handles hit the adjacent drawer, you’re going to be frustrated every time you want a scoop of ice.

When to Skip the Built-In Route Altogether

By day three, I was covered in drywall dust and questioning my life choices. For many, the hassle of undercounter ice maker installation just isn't worth the square footage. If you aren't ready to cut into your plumbing, look at the best freestanding ice maker for home options that don't require a permanent drain.

If you just want great ice without the three-day headache, a dedicated countertop ice maker is a much smarter play. You lose the 'built-in' look, but you gain a Saturday back. I love my under-counter unit now that it's in, but I’d never do the install myself again.

FAQ

How long does installation actually take?

If the plumbing and electrical are already there, it takes about 45 minutes. If you are starting from scratch, expect a full weekend of work and at least three trips to the hardware store.

Can I use a saddle valve for the water line?

No. Saddle valves are prone to leaking and often don't provide the consistent pressure required for high-output machines. Use a proper T-valve with a shut-off.

Is the drain pump loud?

Yes. It sounds like a small dishwasher starting up for about 10 seconds every time the reservoir fills. You’ll get used to it, but don't put it right next to a bedroom wall.
