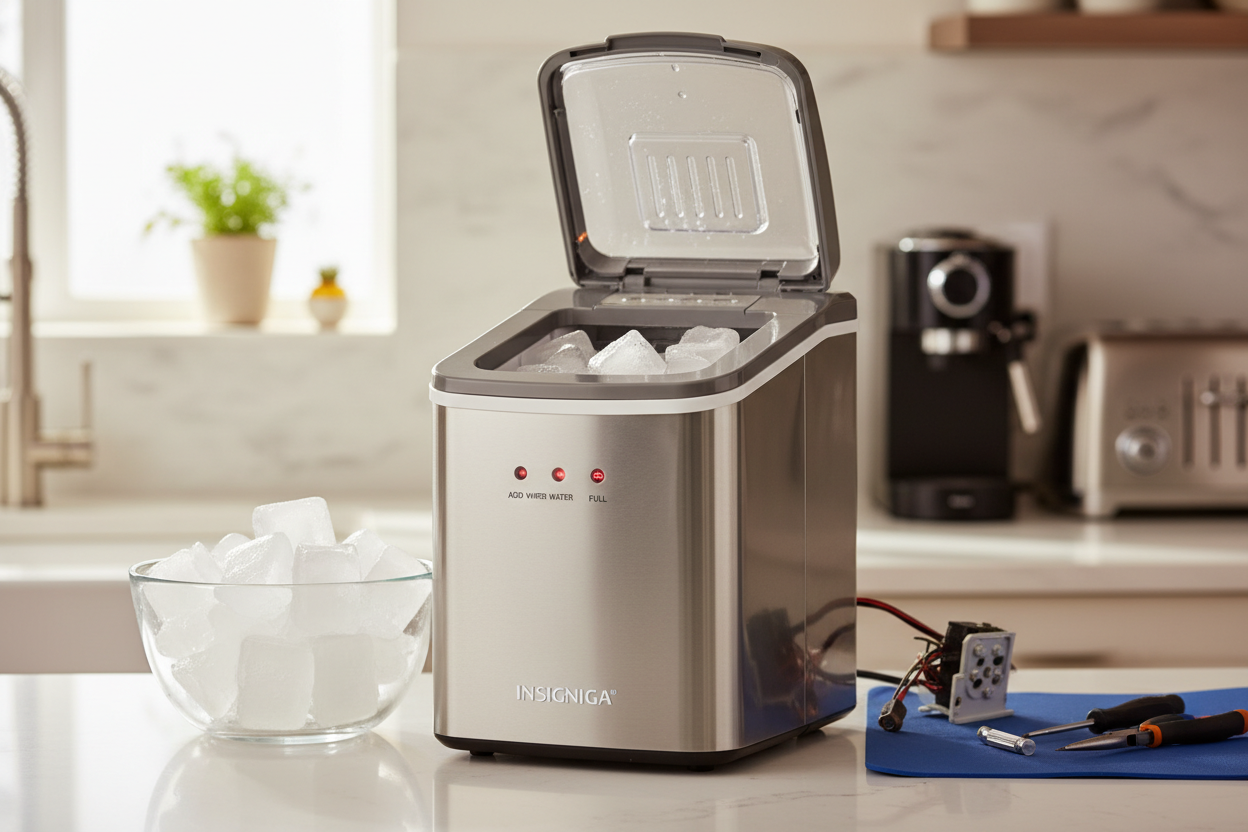

My Insignia Ice Maker Not Working Led to a Messy Teardown
I woke up last Tuesday to the sound of a dry pump wheezing and the dreaded orange light blinking on my kitchen counter. After eight months of churning out bullet ice for my daily iced coffee, my insignia ice maker not working became a reality. It wasn't just a glitch; the tray was stuck in a half-tilt, and the machine was convinced it was out of water despite being filled to the max line.
The Day the Budget Ice Machine Died
The failure didn't happen all at once. For a week, the cycle times had been creeping up from the advertised 6 minutes to nearly 11. Then, the 'Add Water' loop started. This is the classic Insignia death rattle where the sensor fails to recognize the reservoir level, leaving you with a dry evaporator and a very quiet kitchen.
I tried the basics. I cleaned the sensor with vinegar. I unplugged it for an hour. Nothing. The machine would hum, the fan would spin, but the water tray refused to move. It was clear this wasn't a software hiccup—it was a mechanical protest. I realized that if I wanted ice for the weekend, I was going to have to get my hands dirty and figure out why this $100 appliance had suddenly quit on me.
- Initial Symptom: 'Add Water' light stays on despite full reservoir.
- Secondary Symptom: Ice tray stuck in the 'dump' position.
- The Sound: A clicking noise followed by a 30-second silence.
- The Reality: These budget units are often built with plastic gears that have a finite lifespan.
Why Is My Insignia Ice Maker Not Making Ice?
When you find your insignia ice maker not making ice, the culprit is usually one of two things: the water pump or the microswitches that tell the tray when to stop moving. In my case, the pump was trying to prime, but a small piece of calcium buildup had jammed the impeller. Even if you use filtered water, these small-scale pumps are incredibly sensitive to any mineral deposits.
I’ve seen similar issues when a commercial ice maker not making ice causes a whole restaurant to grind to a halt, but at least those machines have replaceable parts. With the Insignia, the pump is a generic 12V DC model tucked deep inside the chassis. If the fill tubes are frozen or the pump is dead, the sensors will prevent the cooling cycle from even starting to protect the compressor from overheating.
The Truth About How to Reset Insignia Ice Maker Units
The internet will tell you that knowing how to reset insignia ice maker units is as simple as holding the power button. While holding the power button for 10 to 15 seconds can clear a 'ghost' error on the control board, it won't fix a physical obstruction. I tried the reset three times. Each time, the machine would cycle once, fail to find the 'home' position for the tray, and go right back into error mode.
A soft reset is great if your power flickered and the logic board is confused. However, if the microswitch that detects the tray position is bent or corroded, no amount of button-holding will save you. It’s a bit like rebooting a computer when the hard drive has physically shattered—you’re just delaying the inevitable realization that the hardware is toast.
How to Disassemble Insignia Ice Maker Housings Without Snapping Plastic
If you're brave enough to try how to disassemble insignia ice maker housings, grab a long-neck Phillips head screwdriver. First, you have to peel off the rubber feet on the bottom; there are four hidden screws there that hold the entire outer shell to the base. Once those are out, you have to carefully pry the plastic shell upward. Be warned: the control panel on the lid is connected by a very short, very fragile ribbon cable.
Inside, it’s a cramped world of copper tubing and damp insulation. I found that the 'Add Water' sensor was actually just two metal probes that had oxidized. A quick scrub with some steel wool brought back the electrical continuity. However, the real mess was the tray motor. The plastic gears had stripped because a stray ice cube had jammed the mechanism during the last harvest. It’s a reminder that these machines are built for convenience, not for decades of service.
Insignia Ice Maker Troubleshooting: When to Throw in the Towel
Effective insignia ice maker troubleshooting means knowing when the repair cost exceeds the value of the machine. If you open yours up and see a leak in the coolant lines (usually signaled by an oily residue) or if the compressor clicks but never gets cold, it’s over. Replacing a compressor on a portable unit costs more than just buying a sleek black ice maker model that comes with a fresh warranty and a cleaner design.
In my teardown, I managed to get the tray moving again, but the pump died for good two days later. These components are often timed to fail around the same time. If you’ve spent more than two hours with a screwdriver in your hand and the machine still isn't dropping cubes, you are fighting a losing battle against planned obsolescence. These units are great for a dorm or a small apartment, but they aren't 'heirloom' appliances.
What I Replaced My Broken Machine With
After my messy weekend of surgery, I decided to stop trying to resuscitate budget tech. I realized that for the price of two cheap units, I could have bought one high-end machine with a metal drive train. If you are tired of the 'Add Water' light lying to you, it might be time to upgrade to a new ice maker that actually offers a self-cleaning mode and a more robust pump system.
I ended up choosing a model with a front-facing drain plug—because pulling the Insignia away from the wall and tipping it over the sink every time I wanted to clean it was half the reason I neglected the maintenance in the first place. Buy for the features that make your life easier, not just the lowest price tag on the shelf.
FAQ
How do I force a cleaning cycle on an Insignia ice maker?
Most models don't have a dedicated button. You have to mix a 1:1 ratio of water and vinegar, plug it in, and let it run for two cycles before dumping the ice and rinsing the reservoir. If yours has a 'Clean' button, hold it for 5 seconds.
Why is my ice maker making a loud grinding noise?
This is usually a sign that the plastic gears in the harvest motor are stripping or that an ice cube is jammed behind the tray. Unplug it immediately and let the ice melt completely before restarting.
How long should an Insignia ice maker last?
With daily use and monthly cleaning, you can expect 12 to 18 months. If you use hard water and never descale it, you'll be lucky to hit the 6-month mark before the pump fails.
