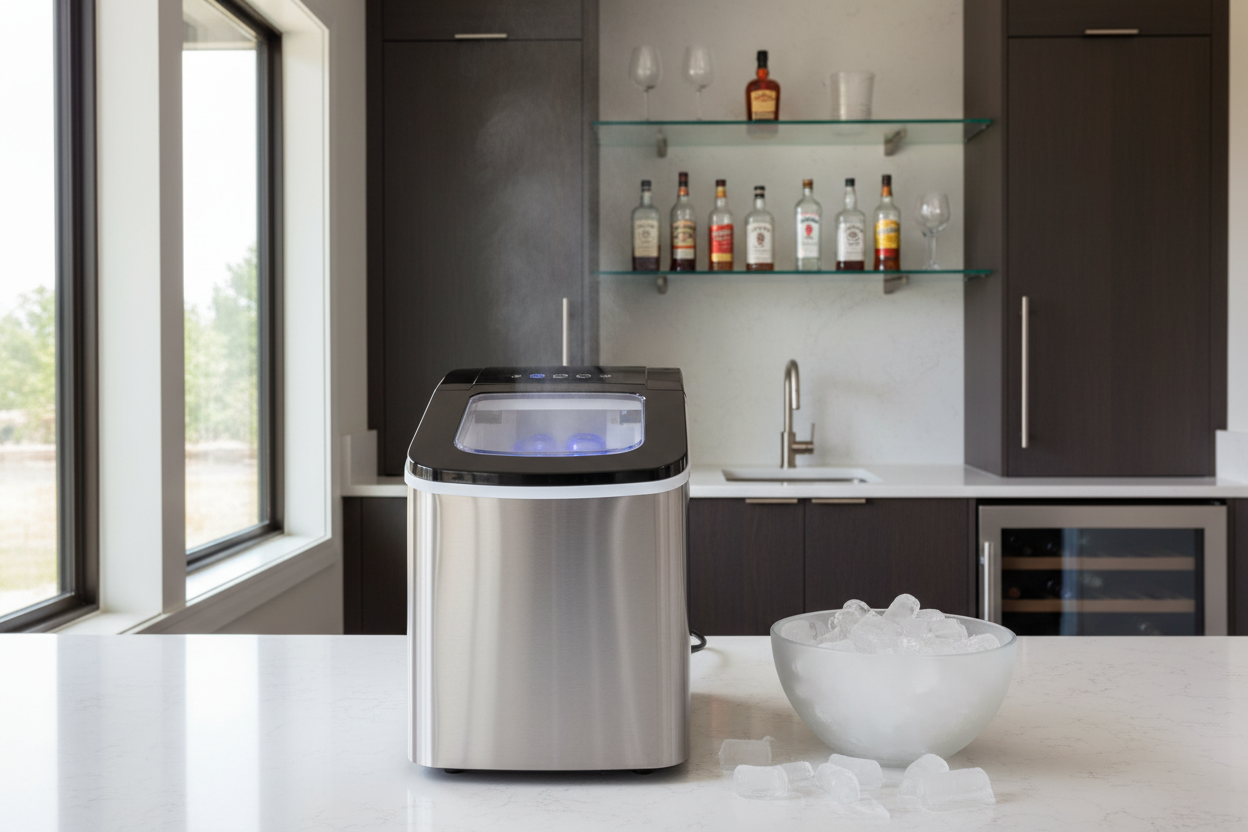

How an Ice Machine Revit File Saved My Wet Bar Remodel

How an Ice Machine Revit File Saved My Wet Bar Remodel

I was three weeks into my wet bar remodel when I realized my 'eyeballing it' strategy for the countertop was a disaster waiting to happen. I had already picked out the marble and scheduled the cabinet install, assuming any standard countertop unit would just work. Then I downloaded the ice machine revit file for the unit I wanted and saw the red flags everywhere. My custom cabinetry was about two inches too shallow to accommodate the plug and the water line, a mistake that would have cost me thousands in re-fabrication fees.

  • Clearance is king: Never trust a 'product depth' spec without accounting for the plug.
  • Ventilation matters: These machines are heat pumps; they need to breathe or they die in six months.
  • Weight adds up: A full 2-gallon reservoir adds significant stress to floating shelves.
  • 3D visualization: Seeing the door swing in a digital model prevents 'handle collisions' with nearby drawers.

The Dimension Disaster That Started It All

The story starts with a simple assumption: 'It is a small appliance, it will fit anywhere.' I had planned a sleek, recessed nook for a portable unit under my custom wet bar cabinets. I measured the height of the machine—13.5 inches—and gave myself a 14-inch opening. I felt like a genius until I looked at the actual 3D model and realized that these are top-loading machines. You cannot open a lid to pour water or scoop ice if you only have half an inch of headroom. I would have been pulling the machine out onto the counter every time I wanted a drink.

Then there is the heat. Most people do not realize that ice makers are essentially small refrigerators that dump heat out of the side or back. In my initial 'tight fit' plan, the fan would have been blowing hot air directly into a sealed wooden cabinet. My first batch of ice might have taken 7 minutes, but by the fourth batch, that cycle time would have jumped to 15 minutes as the internal temperature rose. Without at least 6 inches of clearance on the vent side, you are basically running a slow-motion oven, not a freezer.

Why You Need an Ice Maker Revit Family for Kitchen Planning

Plugging an ice maker revit family into my 3D kitchen layout changed everything. It is not just about the footprint; it is about the 'invisible' requirements that a static PDF spec sheet misses. When I imported the ice maker revit file, I could see the exact sweep of the power cord. Most of these units have a thick, grounded plug that sticks out two inches from the wall. If your 'recessed' nook is exactly the depth of the machine, the machine will actually stick out past your countertop edge because of that cord.

My Revit model also helped me visualize the plumbing. If you are going for a unit with a permanent water line, the 3D family shows you exactly where the intake valve sits. In my case, it was on the bottom left, which meant I had to move my planned shut-off valve to the other side of the sink base. Checking these spatial hurdles before construction begins is the difference between a clean, built-in look and a messy tangle of hoses behind your bar. I also used the model to check noise paths; placing a 55dB machine right next to the seating area in a 3D space made me realize I needed to move it to the far end of the counter.

Where to Find a Reliable Ice Machine CAD Block

Finding a reliable ice machine cad block is harder than it should be. Manufacturers love to give you a grainy PDF, but that does not help when you are drafting in 2D or 3D. I have learned to ignore the marketing renders and head straight for the 'Architectural Resources' or 'Spec Sheets' tab on the manufacturer's site. If they do not offer a native file, I look for an ice maker cad block on professional repositories like BIMobject or GrabCAD.

You have to be careful, though. A generic block might give you the width and height, but it will not show you where the drain plug is located. On the model I eventually bought, the drain plug is on the very bottom back. If I had used a generic block, I would not have known that I needed a removable kickplate to access it for cleaning. Always verify the vent locations on your ice machine cad block; a block that shows a front vent when your actual machine vents from the back is a recipe for a dead compressor in six months. I personally cross-reference the CAD file with a physical measurement of a floor model whenever possible.

Visualizing Built-In vs. Countertop Aesthetics

My software let me swap finishes and styles instantly, which was a massive help in the decision-making process. I originally wanted a 15-inch built-in unit, but the rendering showed it looked too industrial for the 'homey' vibe I was going for. I eventually tested a sleek black ice maker in the 3D view against my white shaker cabinets. Seeing that dark finish against the white quartz in my rendering sold me instantly. It looked like a deliberate design choice rather than an afterthought sitting on the counter.

I also spent a lot of time debating whether I should just upgrade your built-in machine in the main kitchen refrigerator instead of adding a dedicated bar unit. The 3D walkthrough proved that the distance from the main fridge to the wet bar was just far enough to be annoying during a party. Plus, the 3D model of the standalone unit allowed me to see how much actual counter space I would lose. I realized that by choosing a slightly taller, narrower unit, I could keep enough room for a cutting board and a citrus bowl. Seeing the 'nugget ice' vs 'bullet ice' output in a render sounds silly, but it actually helped me decide that the texture of nugget ice was worth the extra $200 for my specific cocktail needs.

The Final Specs That Actually Mattered

Before I hit 'buy' on my new Ice Maker, I checked the final physical specs against my digital model one last time. The weight was the kicker—38 pounds empty, but nearly 55 pounds when the water reservoir is full and the ice basket is topped off. My floating shelf needed extra bracing that I had not originally planned for. I also realized the water line input was 3 inches higher than my floor drain, which meant I did not need a condensate pump—a $150 saving I only discovered by mapping the elevations in CAD.

I also checked the cord length. Most of these units come with a 6-foot cord, which sounds like plenty until you are routing it around a sink and behind a wine cooler. My Revit model showed I was going to be about 4 inches short of the outlet. Because I caught this in the planning phase, I was able to have the electrician move the outlet during the rough-in stage. It is those tiny, one-inch wins that make a DIY project look like it was handled by a pro. Planning with accurate files is not just about the machine; it is about the entire ecosystem of your kitchen.

FAQ

Can I use a regular CAD block for a nugget ice maker?

Only if the dimensions match exactly. Nugget machines are usually deeper because they need more insulation and a beefier auger system compared to standard bullet ice makers.

Does a Revit family include the water line?

The best ones do. If yours does not, manually add a 2-inch 'void zone' behind the unit in your model to represent the space needed for the hose and the plug head.

What if the manufacturer doesn't provide a Revit file?

Use a generic box of the same dimensions but manually add 'clearance zones' in your model to represent the door swing and the 6-inch ventilation path required for the fan.
