Is the Amana Ice Maker Shut-Off Arm Supposed to Be Up or Down?

I have spent more time than I care to admit chipping away at a frozen glacier at the bottom of my freezer because I forgot to lift a tiny metal wire before a long weekend. It is a classic fridge-owner fail. You think the bin will just stop when it is full, but then the sensor fails, and suddenly your frozen peas are buried under five pounds of cubes. Understanding your amana ice maker shut-off arm is the only way to avoid the 'ice avalanche' when you open the door.

Quick Takeaways

• Down is On: If the arm is lowered, the machine is actively trying to make ice.
• Up is Off: Lifting the arm until it clicks stops production.
• The 24-Hour Rule: It takes about 24 hours for a newly turned-on unit to stabilize and fill the bin.
• Whirlpool DNA: Amana and KitchenAid use nearly identical mechanical arms.

The 'Float Valve' Logic Behind Your Ice Bin

Most people overthink this, but the mechanism is actually low-tech and brilliant. Think of the bail wire like the float in a toilet tank. When the water (or in this case, the ice) reaches a certain height, it pushes the arm up, which mechanically tells the machine to stop. It is a simple trick I use to remember: if the arm has room to fall, it has room for more ice.

Generally, the ice maker switch up or down rule is universal for these mechanical units. When the arm is in the 'down' position, it is searching for the top of the ice pile. If it does not hit anything, it triggers another harvest cycle. If it hits a pile of ice, it stays propped up, and the internal switch stays open, killing the power to the mold heater and the motor.

Decoding the Amana Ice Maker Shut-Off Arm

On an Amana, that shut-off arm is usually a thin, plastic-coated wire. When you move it manually, you should feel a slight bit of tension. If it flops around like a wet noodle, the spring has likely snapped or unhooked from the modular head. You want to feel that definitive 'click' at the top of the stroke.

I have found that real-world output on these Amana units rarely hits the '26 lbs per day' marketing fluff. In my testing, you are looking at about 3 to 4 pounds every 24 hours if your freezer is set to the sweet spot of 0 degrees Fahrenheit. If your freezer is too warm (above 10 degrees), the thermostat on the ice maker head won't close, and the arm stays uselessly down while nothing happens.

Does This Apply to KitchenAid Refrigerators Too?

Yes. Whirlpool is the parent company for both brands, so the internal guts are often interchangeable. If you are trying to figure out how to turn off ice maker in kitchenaid fridge models, the process is identical. You reach in and lift that wire arm until it locks into the 'up' position. People often ask about the kitchenaid ice maker lever up or down orientation; just remember that 'Up' equals 'Off.'

To turn off ice maker kitchenaid units that have a slide switch instead of a wire, look for the 'On/Off' markings near the light. But for the vast majority of standard top-mount or side-by-side units, the kitchenaid ice maker arm up or down rule is your primary control. I have seen these levers get jammed by a single stray cube that flew out of the tray, so if it won't move, don't force it — clear the stray ice first. This is common across many built-in ice maker systems manufactured in the last decade.

How to Tell if Ice Maker Is On (Without Waiting 24 Hours)

If you just moved the arm and want to know how to tell if ice maker is on immediately, listen for the 'hum and thunk.' Within about 30 to 60 minutes of turning it on, you should hear the water inlet valve click behind the fridge. It sounds like a brief 5-second buzz of running water. If you hear that, you are in business.

If you need to know how to turn on ice maker in kitchenaid fridge units that seem dead even with the arm down, check for a secondary power switch. Some higher-end models have a toggle switch on the underside of the ice maker itself. Ensure the kitchenaid ice maker lever up or down position is definitely 'down' and the power toggle is set to 'I' or 'On.' Also, feel the bottom of the ice mold (carefully!). If it feels warm, the heater is working to release a batch of cubes.

Sick of Flimsy Wire Arms? Try a Dedicated Machine

I will be honest: freezer ice makers are the most repaired part of any refrigerator. The wire arms get bent, the plastic gears in the head strip, and the water lines freeze up. If you are tired of reaching into a freezing box just to toggle a flimsy lever, it might be time to stop relying on your fridge altogether.

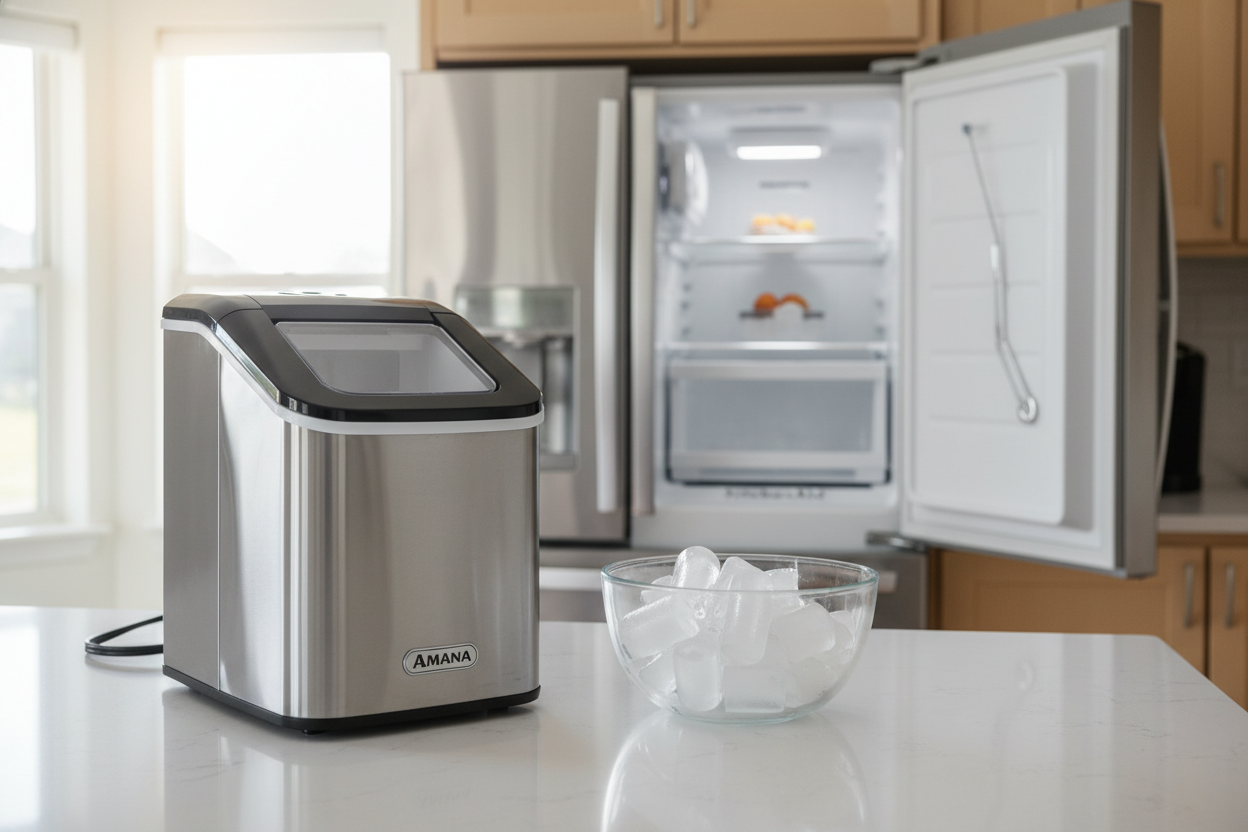

A portable countertop ice maker bypasses all these mechanical headaches. You get your first batch of ice in about 7 minutes rather than waiting 2 hours for a single tray. Plus, there is no shut-off arm to worry about; these units use infrared sensors to detect when the basket is full. It is a much more reliable way to keep your drinks cold without playing 'is the arm up or down' every morning.

FAQ

Is the ice maker arm supposed to be up or down for ice?

Down for ice, up for off. If the arm is raised, the machine thinks the bin is full and will stop production immediately.

Why is my ice maker not working when the arm is down?

Check your freezer temperature. If it is above 10°F (-12°C), the ice maker won't cycle. Also, check the water fill tube at the back; it often freezes solid, blocking water from reaching the tray.

How do I know if my Amana ice maker is getting water?

Listen for a 5-second buzzing sound every hour or so. That is the solenoid valve opening. If you hear the buzz but no ice appears, the line is likely frozen or the water filter is clogged.
