Ice Maker Arm Won't Go Down All the Way? Don't Snap It Off.

I still remember the sound. It was a sharp, plastic 'crack' that echoed through my kitchen at 10 PM while I was trying to prep for a brunch the next morning. I had noticed the bin was empty, saw the bail arm was stuck in the 'up' position, and gave it a helpful little shove. That shove cost me $140 for a new modular head assembly because I snapped the internal timing gear. If your ice maker arm won't go down all the way, put your hands in your pockets and step away from the fridge.

Quick Takeaways

• Never force the arm; the internal gears are made of thin plastic.
• Invisible frost on the pivot point is the most common cause of a jam.
• A warm, damp cloth is safer and more effective than a hairdryer.
• If the arm swings loosely without resistance, the internal spring or micro-switch is likely broken.

Why You Feel Resistance When You Push the Arm

Inside that plastic box at the front of your ice maker is a tiny, low-torque motor connected to a series of cams and gears. These gears are designed to do one thing: slowly rotate to eject ice and lift the bail arm out of the way. When you feel physical resistance, you aren't just fighting a stiff hinge. You are fighting a motor that is currently locked in a specific phase of the harvest cycle.

The arm is connected to a cam that tells the ice maker when the bin is full. If you push past that resistance, you will strip the teeth off the plastic drive gear. Once those teeth are gone, the motor will spin, but the arm will never move again. You've effectively turned a simple frozen hinge into a total hardware failure. Most modular heads aren't serviceable, meaning you can't just buy a new gear; you have to replace the whole unit.

The Most Common Culprit: Invisible Frost Buildup

Freezers are chaotic environments. Every time the fill tube kicks on to refill the mold, a tiny amount of water can splash or mist. If even a few drops land on the pivot point where the metal bail arm enters the plastic housing, it creates a 'micro-weld' of ice. This is why your ice maker arm stays up even when the bin is empty. It only takes a thin layer of frost to provide more resistance than the internal spring can overcome.

Don't reach for a hairdryer. I've seen people warp the plastic housing or melt the wire insulation in seconds. Instead, soak a rag in hot water, wring it out, and hold it against the pivot point for two minutes. This gentle heat melts the frost without risking the integrity of the components. If you are confused about arm up or down positions during this process, just remember that the arm needs to be in its lowest resting state to trigger a new cycle.

Brand-Specific Quirks and Known Jamming Issues

Not all ice makers are built the same, and different brands have very specific ways of failing. Whether it's a tolerance issue in the plastic or a poorly placed fill tube, knowing your model's 'personality' helps you diagnose the jam faster.

The Classic Frigidaire Gear Jam

If you find your frigidaire ice maker arm stuck, it's often because the timing gear has hopped a tooth. This usually happens if a stray ice cube gets wedged behind the arm during a harvest cycle. Frigidaire units use a relatively soft plastic for their cam assembly. If the arm can't reach its full 'down' extension, the micro-switch never closes, and the water valve never opens. I've found that sometimes a hard reset—unplugging the fridge for ten minutes—allows the motor to 'home' itself, but if the gear is physically blocked by ice, you'll need that warm cloth trick first.

Whirlpool and Kenmore Spring Failures

When you have a kenmore ice maker arm stuck in up position, the issue is frequently the tension spring rather than ice. Whirlpool-built units (which include many Kenmore models) use a small coil spring to pull the arm down. These springs can slip out of their plastic grooves if the arm is jostled. If the arm feels like it has zero tension—meaning it just stays wherever you put it—the spring has likely popped off or snapped. You'll need needle-nose pliers and a bit of patience to reseat it.

What if the Arm Flops Freely, but Still No Ice?

This is the 'ghost' jam. You might find an ice maker lever stuck initially, but after you wiggle it, it suddenly drops and feels totally loose. If your ice maker arm stuck in down position but the machine still isn't producing, you've likely disconnected the arm from the internal slide. The ice maker arm not working electrically usually means the internal micro-switch has failed or the plastic 'paddle' that hits the switch has snapped off. In the world of fridge repair, the bail arm is usually guilty because it's the only moving part that users regularly interact with.

Tired of Fixing Fridge Ice Makers?

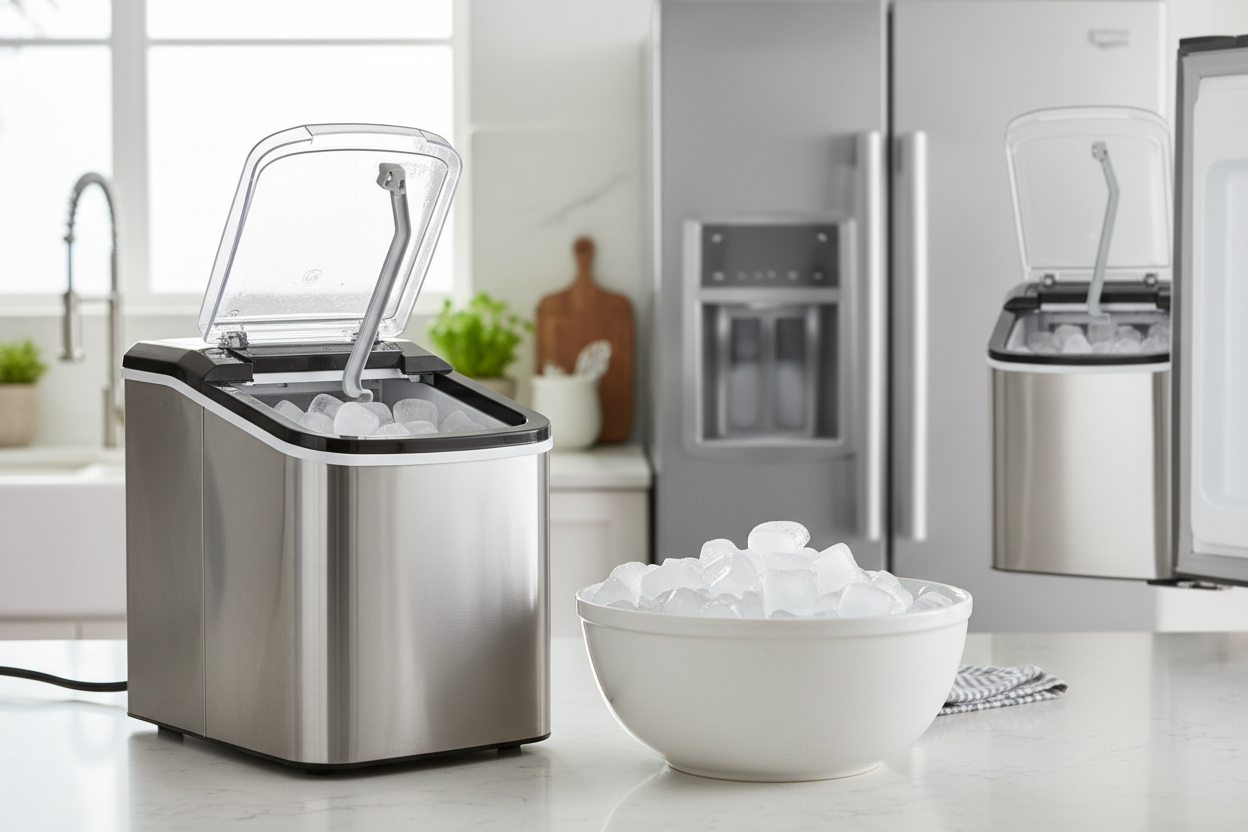

I've spent more hours than I care to admit hunched over a freezer with a flashlight. Refrigerator ice makers are notoriously unreliable because they live in a harsh, vibrating, sub-zero environment. If you've already stripped the gears or the heating element in your mold has burnt out, you're looking at a significant repair bill. Honestly, after my third repair in two years, I gave up on the built-in unit. Upgrading to a dedicated countertop ice maker was the best move I made. They produce a batch of ice in about 6 minutes, whereas a fridge unit takes 90 minutes. Plus, you don't have to worry about a delicate plastic arm ruining your morning coffee routine.

FAQ

Can I just spray WD-40 on the ice maker arm?

Absolutely not. WD-40 is not food-safe and will gum up in the freezing temperatures. If you must lubricate a pivot, use a tiny amount of food-grade silicone grease, but usually, just clearing the ice is enough.

Why does my ice maker arm keep freezing in the up position?

Check your freezer temperature. If it's set too low (below -5°F), any moisture in the air or splash-back from the fill tube will flash-freeze the mechanism instantly. Also, check if your fridge is level; an unlevel fridge causes the water to splash when the mold fills.

How do I know if the motor is dead or just the arm?

Listen for a low hum. If you hear the motor trying to turn but the arm isn't moving, the gears are stripped. If there is total silence and the arm is down, the motor or the water inlet valve is likely the culprit.
