I remember the exact moment I realized I didn't know how an ice maker works. It was a swampy Tuesday in July, and my fridge's internal unit had finally given up the ghost. I was staring at a tray of lukewarm water that refused to freeze, wondering why a $2,000 appliance was failing at its one job while a tiny box on my neighbor's counter was churning out cubes every ten minutes.

Naturally, I bought one, took it home, and immediately voided the warranty by taking the back panel off. What I found inside wasn't a miniature North Pole; it was a clever, compact refrigeration loop that puts your standard freezer to shame. If you have ever wondered how does an ice machine work, the answer is less about 'cold air' and more about 'direct contact.'

Quick Takeaways

  • Direct contact freezing is roughly 10x faster than ambient air freezing.
  • Most portable units use a 'heat harvest' cycle to drop ice from the pegs.
  • The hollow 'bullet' shape is a result of freezing from the inside out.
  • Countertop machines are not storage freezers; they are continuous loop makers.

Why Your Fridge Takes All Day (But a Portable Unit Takes Minutes)

Most people ask, how does a refrigerator ice maker work, and the answer is actually pretty depressing. Your fridge relies on ambient air. It blows cold air over a plastic mold, waiting for the water to eventually give up its heat. It is a slow, inefficient process that takes hours. This is why when you host a party, your fridge can't keep up.

A portable ice maker, on the other hand, doesn't wait for the air to do the work. It uses a method called conductive cooling. Instead of a plastic tray, it uses metal fingers (evaporator pegs) that are submerged directly in water. Because metal is a far better conductor than air, the heat transfer happens almost instantly. This explains how do fridge ice makers work so differently compared to dedicated units—the fridge is a generalist, while the portable unit is a specialist.

When you look at how do refrigerators make ice, you're looking at a 4-to-6 hour cycle. A dedicated machine does it in 9 minutes. If you have ever wondered how does fridge make ice so slowly, it's because the freezer prioritizes keeping your peas frozen over making your drinks cold.

The Guts of the Machine: What's Actually Inside

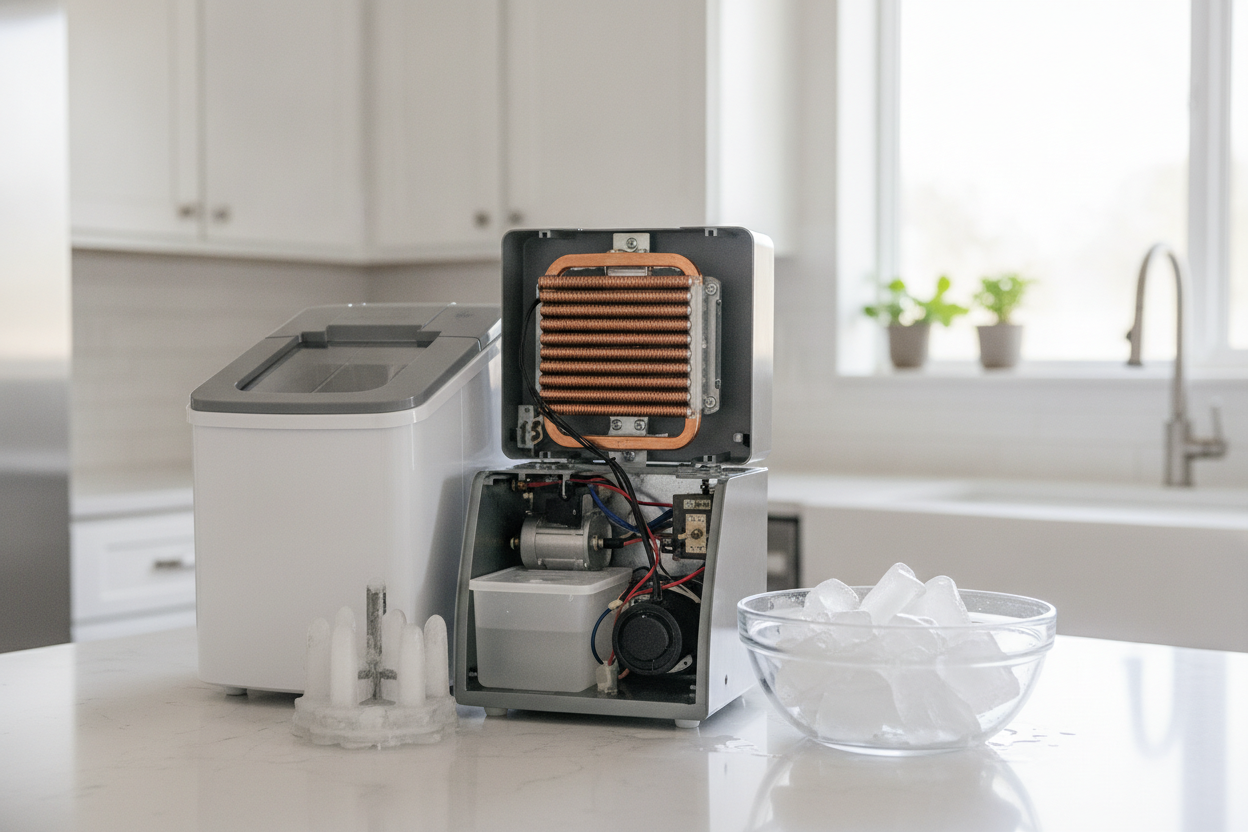

Once I got the shell off my unit, the layout was surprisingly logical. There is a small compressor—about the size of a large grapefruit—tucked in the corner. This is the heart of the system. It pumps R600a refrigerant through a series of copper coils. You will also see a water reservoir at the bottom, a small electric pump, and a tilting plastic tray at the top.

The most important part is the evaporator. In a countertop unit, this consists of several chrome-plated metal pegs hanging over the water tray. This is where the magic happens. Whether you are curious about how does ge ice maker work or how does whirlpool ice maker work, the fundamental components are similar, though the geometry of the evaporator changes depending on the ice shape.

Step-by-Step: How an Ice Maker Works Its 9-Minute Magic

To understand how does a countertop ice maker work so fast, you have to watch the cycle in real-time. I sat there with a stopwatch and a flashlight to track the movement. It is a three-act play that repeats until the sensor tells the machine it is full.

Step 1: Pumping the Water

The cycle begins when the water pump kicks on. It pulls water from the lower reservoir and fills the upper tray. This tray is positioned so that the metal evaporator pegs are completely submerged. If you've ever struggled with how to use ice machine units that seem 'stuck,' it's often a failure in this initial pump stage. The machine needs to ensure those pegs are fully 'bathed' in water to start the freezing process.

Step 2: The Flash Freeze

This is the loud part. The compressor starts humming, pumping cold refrigerant directly into those metal pegs. Within seconds, the pegs drop to sub-zero temperatures. Because the water is in direct contact with the freezing metal, ice begins to form around the peg. This is why the ice is bullet-shaped and hollow—it grows from the inside out. When people ask how do ice makers work in refrigerators, they often expect this same speed, but without the direct contact of the pegs, it's just not possible.

Step 3: The Heat Shock Harvest

How do ice machines make ice and then release it so cleanly? This was the coolest part to witness. Once the ice reaches the right thickness, a solenoid valve flips. Instead of cold refrigerant, the compressor sends hot gas through the pegs for a few seconds. This 'heat shock' melts the innermost layer of the ice just enough to break the bond. The ice bullets then slide off the pegs and are scooped into the basket by a plastic shovel. It’s a brilliant bit of engineering that avoids the need for mechanical grippers.

The One Thing People Misunderstand About Countertop Models

The biggest complaint I see in reviews is people saying, 'My ice is melting!' Here is the hard truth: a countertop machine is not a freezer. It is an ice factory. The bin is insulated, but it isn't refrigerated. If you buy a sleek black ice maker for your kitchen, you have to understand the 'continuous loop' design.

As the ice in the basket slowly melts, the water drips back down into the reservoir. The machine then sucks that same water back up and turns it into ice again. It’s a self-sustaining cycle. If you want to keep the ice, you have to bag it and move it to your actual freezer. Understanding how does ice maker work in freezer units vs. countertop units will save you a lot of frustration. One is for storage; the other is for production.

Personal Experience: The 3 AM Hum

I’ve run my unit through hundreds of cycles. One thing they don't tell you in the manual is that these things are rarely silent. You'll hear the compressor kick on (about 55dB), the water pump whirring, and the 'clunk-clunk' of the harvest. I once forgot to turn mine off before bed, and the sound of ice dropping at 3 AM sounded like a small intruder in the kitchen. But for the ability to have a full bucket of ice in under an hour? I'll take the noise any day.

FAQ

Why is my ice maker making loud clicking noises?

Usually, this is the plastic shovel hitting a piece of ice that didn't fall correctly. Check if any 'half-melted' cubes are jammed in the back. If the harvest cycle is too short, the ice doesn't slide off cleanly, causing a jam.

Do I need to use distilled water?

You don't *need* to, but tap water contains minerals that will eventually scale up the evaporator pegs. If you use tap, plan on running a vinegar cleaning cycle every month to keep the heat transfer efficient.

Why are the first few batches of ice so small?

When you first start the machine, the water in the reservoir is at room temperature. The machine has to work harder to chill the water down. By the third or fourth batch, the water is already near freezing, so the cubes come out thicker and more solid.
