I Memorized the Frigidaire EFIC130-SS Manual So You Can Toss It
I recently spilled a thick blueberry smoothie directly onto my factory booklet. It is now a purple, sticky brick at the bottom of my junk drawer. If you are in the same boat, searching for your frigidaire efic130-ss manual because your machine is blinking at you like a confused robot, do not sweat it. I have spent enough time timing these cycles with a stopwatch to know this machine better than the engineers do.

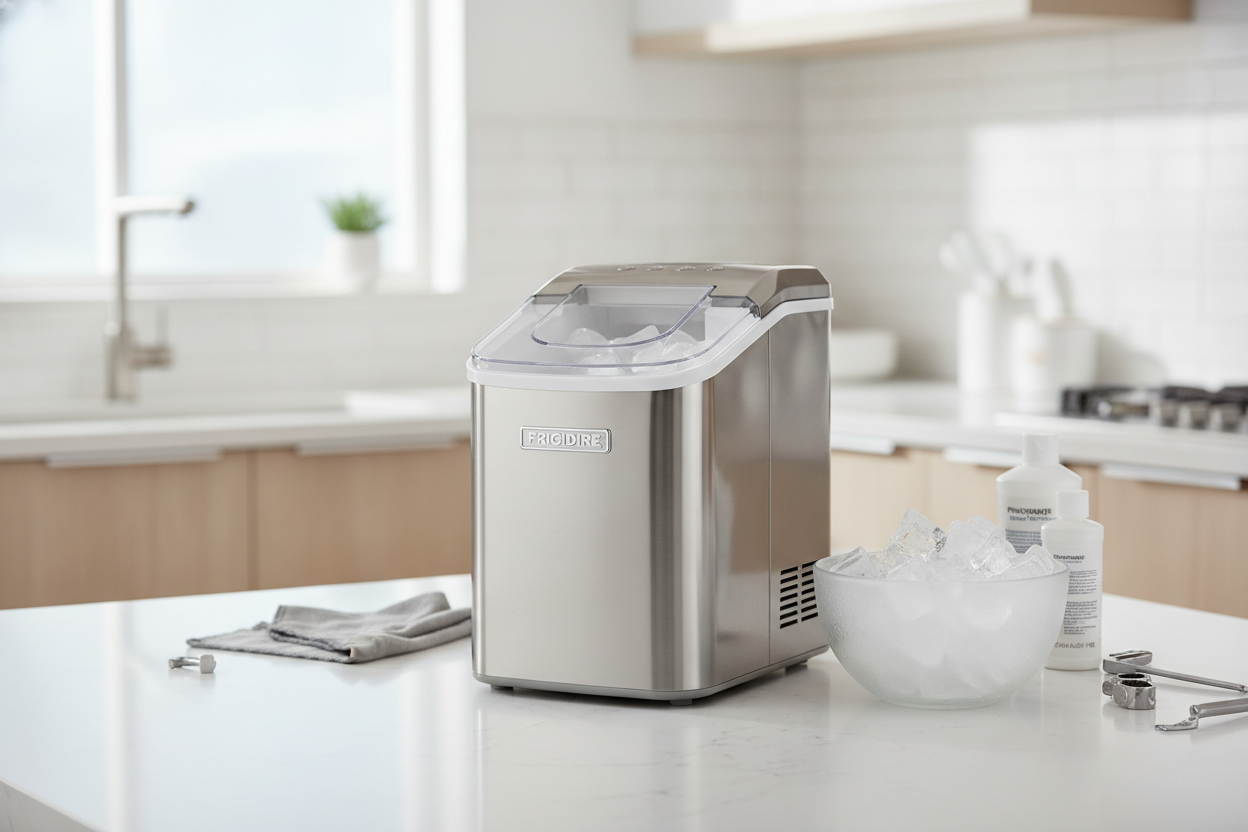

The EFIC130-SS is a stainless steel workhorse, but it is also temperamental. I have run this unit through hundreds of cycles, documenting exactly why it stops making ice at 2 AM and why that first batch always looks like sad, half-melted slush. You do not need the paper manual; you just need these specific steps to keep the bullets flowing.
Quick Takeaways
- Real-World Output: Expect about 18-20 lbs per day, not the marketing-heavy 26 lbs, unless you live in a walk-in freezer.
- Cycle Speed: The first batch takes 9 minutes; subsequent batches drop to about 7 minutes once the evaporator is cold.
- Noise: It registers around 48 decibels—audible, but quieter than a dishwasher.
- Drainage: The plug is located on the bottom left. Never pull it unless you are over a sink.
The Only 3 Setup Steps That Actually Matter
Most people rip the EFIC130-SS out of the box and plug it in immediately. That is the fastest way to kill the compressor. Because this unit uses R134a or R600a refrigerant, the oil needs to settle. If the box was upside down on the delivery truck, that oil is in the coils. If you turn it on now, you will burn out the motor in a month. Let it sit upright on your counter for a full 24 hours before the first plug-in. No exceptions.
Next, ignore the generic Frigidaire ice maker instructions that tell you to just 'wipe it down.' You need to wash the plastic ice basket and shovel with warm, soapy water. There is a distinct 'factory smell' on these parts that will migrate into your ice if you do not scrub them first. Use a soft cloth; the clear lid scratches if you even look at it with a rough sponge.
Finally, run a mandatory flush cycle. Fill the reservoir to the 'MAX' line, let it run for two cycles (about 15-20 minutes), and then throw that ice away. This clears out any dust from the internal water lines. I have found that skipping this step results in a metallic aftertaste that ruins a good bourbon.
Decoding Error Lights Without the Frigidaire Ice Maker EFIC130-SS Manual
The lights on the EFIC130-SS are its only way of screaming for help. When the 'Add Water' light glows red, the machine has lost its prime. Usually, this means the reservoir is empty, but I have seen it happen when an air bubble gets trapped in the intake. If the tank is full and the light is still on, gently poke a toothpick into the water inlet hole at the bottom of the tank to break the air lock.
The 'Ice Full' light is more deceptive. To understand the fix, you have to know how does a Frigidaire ice maker work at a sensor level. It uses an infrared beam across the top of the basket. If you have your machine sitting in a sun-drenched kitchen, the UV rays can interfere with that beam. The machine will think it is full of ice when it is actually empty. Move it to a darker corner of the counter, and the light should turn off.
If both lights are flashing simultaneously, the ice shovel is jammed. This usually happens when a half-formed cube from a previous cycle gets stuck behind the tray. Turn the machine off, wait three minutes for the ice to melt slightly, and gently clear the blockage with your hand. Never use a knife or metal tool to pry ice off the evaporator prongs; you will puncture the refrigerant line and kill the machine instantly.
How to Deep Clean the Machine (Because the Factory Guide Is Vague)
The factory guide suggests 'periodic cleaning,' which is useless advice. If you have hard water, scale will build up on the silver cooling prongs in less than a month. When these prongs get crusty, the ice sticks to them, and the shovel cannot push the cubes into the basket. This causes the motor to strain and eventually fail.
To deep clean, mix a 1:1 solution of white vinegar and filtered water. Pour it into the reservoir and run the machine as if you are making ice. Let it drop two batches of 'vinegar ice.' This forces the acid through the internal pump and over the prongs. After that, let the solution sit in the reservoir for 30 minutes to dissolve the calcium. This is a standard maintenance task for any countertop ice maker if you want it to last more than one summer.
Drain the vinegar using the plug on the bottom left. Be careful—the plug is small and easy to lose down the drain. Rinse the reservoir twice with fresh water and run two more cycles of plain water ice to flush the vinegar scent. If you still smell the plastic or vinegar, a tablespoon of lemon juice in the water tank can neutralize the odor effectively.
When a Simple Reset Isn't Enough
Sometimes, the logic board just gets confused. There is no dedicated reset button on the EFIC130-SS. To perform a hard reset, you must unplug the unit for at least 30 minutes. This allows the capacitors to discharge fully. If you plug it back in and the compressor does not kick on—you will know because the machine stays silent and the fan just blows room-temperature air—the starter relay is likely dead.
If your machine is leaking from the bottom, check the silicone plug. Over time, the seal can degrade. I have fixed this with a tiny bit of food-grade silicone grease, but if the leak is internal, the water pump housing has likely cracked. At that point, the cost of repair often exceeds the value of the unit. If you find yourself in the market for a replacement and want a different aesthetic, you might consider a black ice maker to hide the fingerprints that the stainless steel model seems to attract.
