I stood there with a warm glass of bourbon and a look of pure betrayal. My $2,000 French door refrigerator, a machine that can practically order groceries for me, had failed at its most basic task: providing a single cube of ice. Instead of a satisfying clink, I got a pathetic groan from the motor and a dusting of frost. This led me down a rabbit hole of repair manuals and mechanical teardowns to figure out the samsung fridge ice maker how it works and why it seems designed to fail.

Quick Takeaways

  • Samsung uses 'Direct Cooling,' meaning refrigerant pipes go straight into the ice box.
  • Air leaks are the primary enemy, causing frost to weld the ice bucket shut.
  • The cycle takes about 90 minutes from fill to harvest under ideal conditions.
  • Once the frost starts, the only permanent fix is often an external solution.

Why I Took a Screwdriver to My $2,000 Refrigerator

It started with the 'death rattle.' That’s the sound the auger makes when it’s trying to churn through a solid block of ice that has fused into a prehistoric glacier. Most people call a technician and pay $300 for a 'service kit' that usually just buys you another six months of peace. I decided to take a screwdriver to the housing instead.

What I found was a cramped, plastic-walled room that was never meant to handle the humidity of a modern kitchen. When you open your fridge door, warm air rushes in. In a Samsung, that air finds its way into the ice compartment. Because the cooling pipes are so much colder than the surrounding air, moisture flash-freezes on the components. It’s a design that prioritizes speed over reliability.

The Anatomy of the Samsung Fridge Ice Maker: How It Works

To understand the samsung fridge ice maker how it works, you have to look at the 'Ice Room.' Unlike older fridges that just blew cold air from the freezer into the door, Samsung built an insulated box inside the refrigerator compartment. Inside, you’ll find the ice tray, a heater loop (yes, a heater to help the ice drop), and the auger that pushes the cubes forward.

The brain of the operation is the control board, which monitors a thermistor. This sensor tells the fridge when the tray is cold enough to have solid cubes. If that sensor gets covered in frost, it lies to the motherboard, and your ice production stops entirely. It’s a delicate balance of temperature and timing that falls apart the moment a seal gets a tiny gap.

The Direct Cooling Method Explained

Samsung’s 'Direct Cooling' is the technical culprit. They run a dedicated refrigerant line directly into the ice-making assembly. This is why it can claim to make ice faster than competitors—it’s chilling the tray with liquid refrigerant rather than just cold air. The downside? Those pipes are magnets for every molecule of humidity in your house. Once frost builds up on those pipes, it acts as insulation, ironically making the ice maker warmer and stopping the harvest cycle.

Wait, How Does Samsung Ice Maker Work Step-by-Step?

So, how does samsung ice maker work on a minute-by-minute basis? It starts with the water inlet valve opening for about 5 to 7 seconds, filling the tray. Then, the direct cooling pipes drop the temperature of the tray to roughly 5 degrees Fahrenheit. This takes about 45 to 60 minutes depending on how often you're opening the fridge door.

Once the thermistor hits the target temp, the harvest begins. A small heater under the tray kicks on for a few seconds to loosen the cubes. Then, a motor twists the tray or a rake sweeps the cubes out into the bucket. Finally, the 'feeler arm' or an optical sensor checks if the bucket is full. If it's clear, the whole cycle repeats. In a perfect world, you get about 4 to 5 lbs of ice a day, though the marketing will swear you get 10.

The Fatal Flaw: Why That Little Box Keeps Freezing Over

The flaw is the 'Ice Room' seal. Because this box sits in the 38-degree refrigerator section, it has to be perfectly airtight. If it isn't, the 5-degree cooling pipes pull moisture out of the air like a sponge. This creates a block of ice that eventually jams the auger motor. I’ve spent hours with a hairdryer thawing mine out, only to have it freeze back up 48 hours later. It’s an exercise in futility that most owners eventually grow tired of.

Why I Finally Gave Up and Bought a Countertop Machine

After the third time I had to chip away at my fridge with a plastic spatula, I threw in the towel. I realized that while I understood the mechanics, I couldn't beat physics. I decided to buy a dedicated countertop ice maker and haven't looked back since. It’s faster, it’s quieter, and I don't have to take my fridge apart once a month.

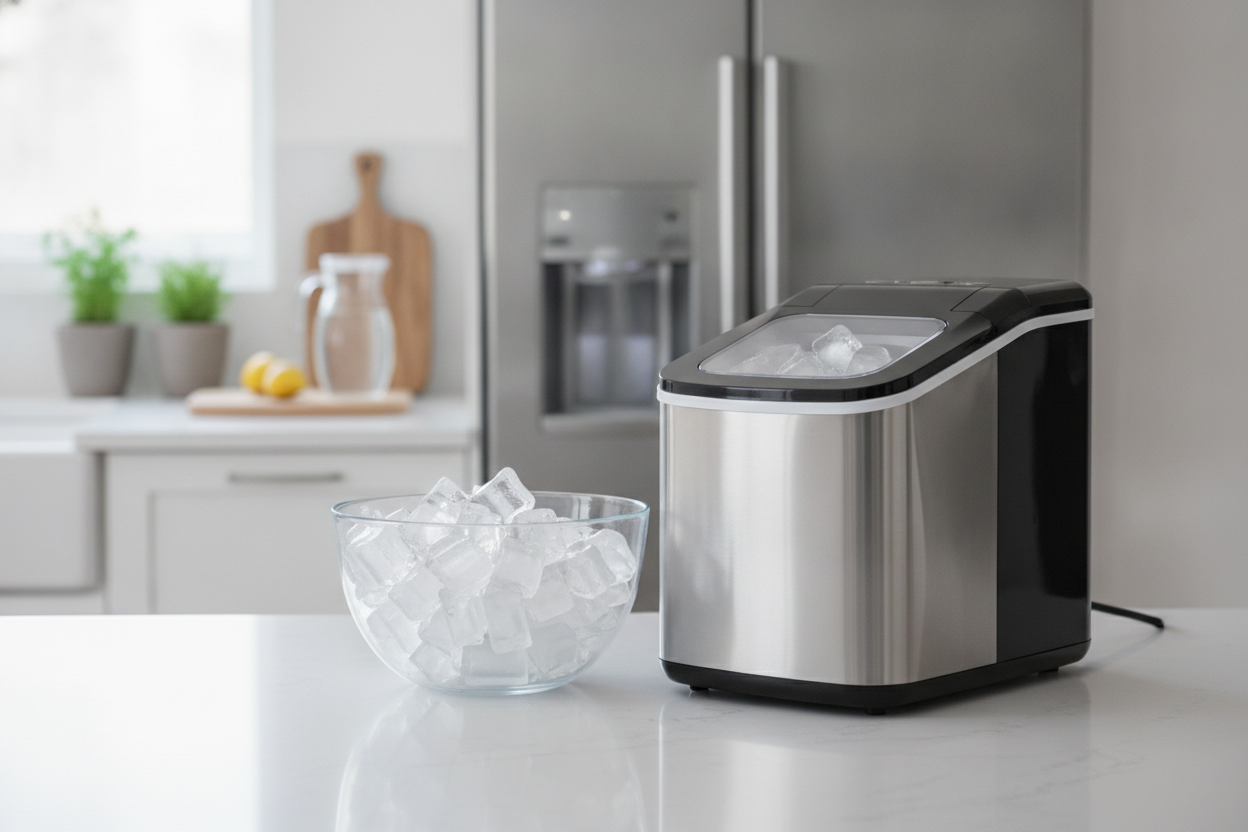

If you're curious about the speed difference, you should check out how a countertop ice maker works so fast compared to the slow, agonizing crawl of a fridge unit. I ended up picking up a sleek black ice maker that actually looks better on my counter than the dispenser hole in my door. Sometimes, the best way to fix a broken appliance is to stop relying on it entirely.

FAQ

Why is my Samsung ice maker making a loud clicking noise?

That’s usually the auger motor trying to turn when the ice is frozen into a solid block. Stop pressing the lever or you’ll burn out the motor. You need to defrost the unit immediately.

How long does a Samsung ice maker take to reset?

After you hit the reset button (usually a small clear switch on the side of the unit), it takes about 5 minutes to run a test cycle and up to 24 hours to return to full production.

Can I fix the frost buildup myself?

You can use a 'seal kit' or food-grade silicone to try and close the gaps in the ice room, but it’s a difficult DIY job. Most people find that a manual defrost every few months is the only temporary fix.
